LHCb Week · 22 June 2026

Conda, Pixi and RattlerFS

Chris Burr
CERN

Image: CERN-EX-66954B © 1998–2026 CERN

LHCb CERN

What are we talking about today?

Conclusions slide from the January 2026 Conda talk
  • I'm not going to talk about using conda for building the stack*
* Hopefully next time 😉

What problem are we trying to solve?

What is a package manager?

  • It installs software and all of its dependencies for you.
  • It resolves a set of mutually-compatible versions so things actually work together.
  • The hard part is gluing everything together
  • apt, pip, conda, spack, ... each manage a different ecosystem.

How does it help LHCb?

  • From one perspective LHCb (and HEP) has solved this problem
    • Install software on CVMFS
    • Call a script like lb-run/lb-conda/lb-dirac/"source .../setup.sh"

How does it help LHCb?

  • From one perspective LHCb (and HEP) has solved this problem
    • Install software on CVMFS
    • Call a script like lb-run/lb-conda/lb-dirac/"source .../setup.sh"
  • But this is a very specific solution, it doesn't solve:
    • How to put software on CVMFS?
    • What about locally without CVMFS/EL9?
    • What if I want different software installed?
    • What if I want to develop software?

Problem: How to put software on CVMFS?

  • We more-or-less have this solved, but...
    • Installing software from LCG is time consuming and causes delays
    • lb-conda is updated by making an MR to lhcb-core/conda-environments
      • Still causes delays and gives less flexibility

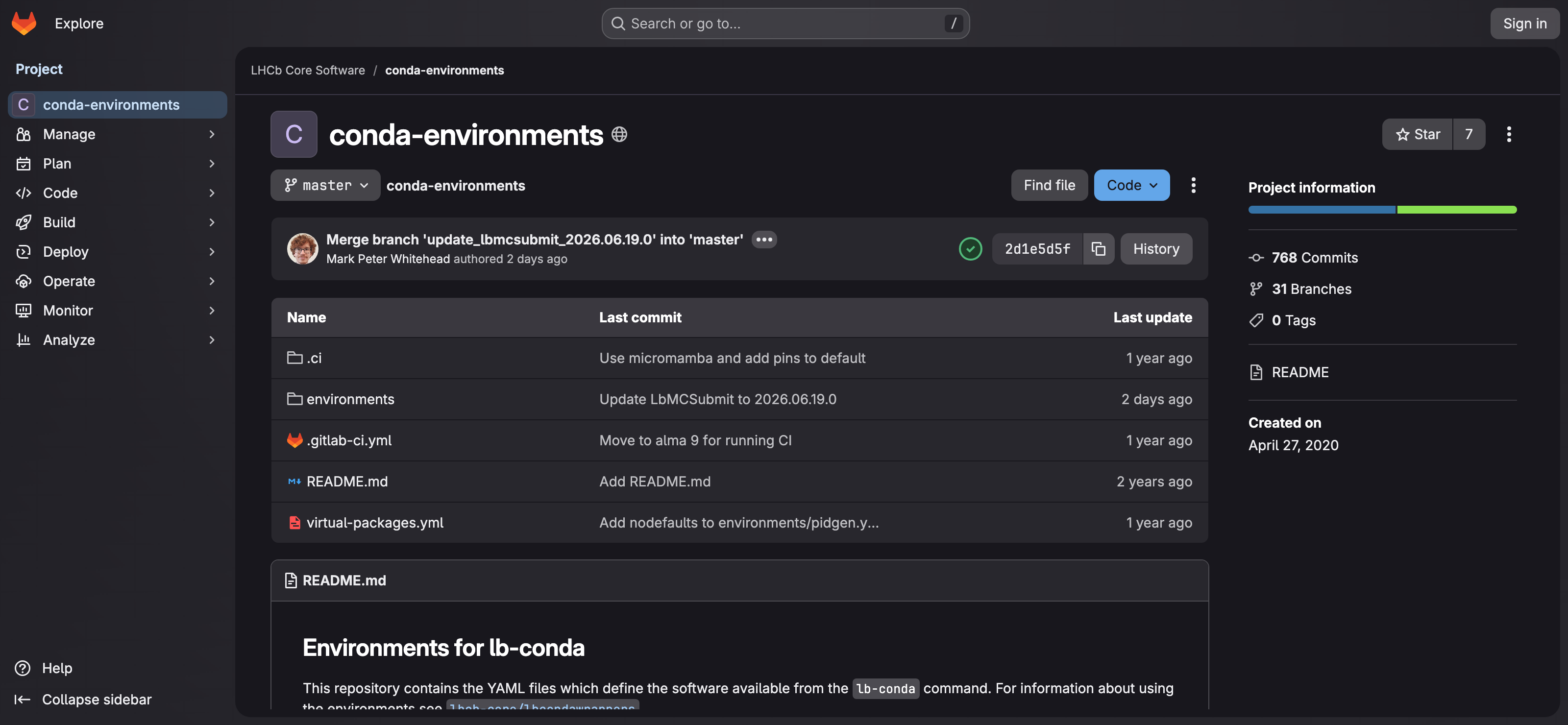

The lhcb-core/conda-environments GitLab repository

Problem: What about locally without CVMFS/EL9?

  • Primary answer: Don't...
  • Can use docker/apptainer maybe, but has never been well maintained.

Problem: What if I want different software installed?

  • Primary answer: Don't...
  • Can maybe try editing PATH or LD_LIBRARY_PATH?
    • High chance of non-trivial issues

Problem: What if I want to develop software?

  • lb-stack-setup works well for developing LHCb software.
  • What about testing a small fix in ROOT?
    • Wait until it's merged, LCG nightlies are updated, then finally test the fix
    • Low chance of building ROOT in a way which will work with DaVinci
  • Non-trivial developments across non-LHCb projects?
    • No chance without significant effort (e.g. GEANT4)

An aside: What about containers?

  • Container images can standardise distribution
    • But they don't help you create the image in the first place
  • Containerisation "technology" also provides some runtime benefits
    • e.g. give me a different operating system, hide from the host, security etc.
  • CVMFS solves the distribution problem for LHCb
    • It's a custom content distribution network (CDN) for software in HEP++

Current status of conda

It's been a while...

Looking back at your PyHEP 2019 conda-forge talk (interesting to see how much has stayed the same over 6+ years)

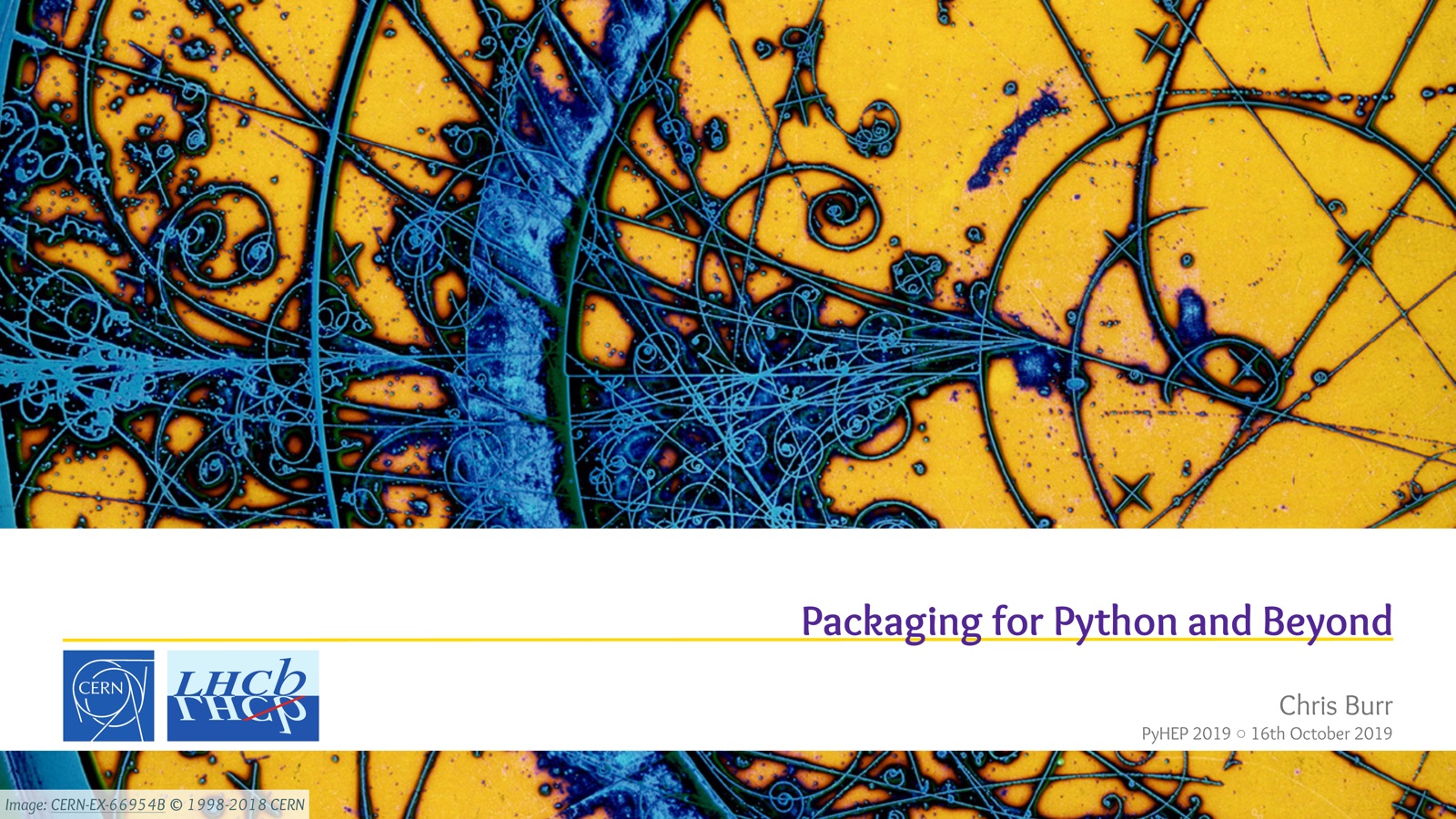

The PyHEP 2019 conda-forge talk
Packaging for Python and Beyond — PyHEP 2019

What has changed?

  • Compiler toolchains are now much more mature
    • Originally hard to use outside of conda builds
    • Now they're very mature and well maintained

What has changed?

  • Compiler toolchains are now much more mature
    • Originally hard to use outside of conda builds
    • Now they're very mature and well maintained
  • Tooling is much faster
    • Used to advertise getting ROOT in under 5 minutes
    • Now it can be ~10 seconds

What has changed?

  • Compiler toolchains are now much more mature
    • Originally hard to use outside of conda builds
    • Now they're very mature and well maintained
  • Tooling is much faster
    • Used to advertise getting ROOT in under 5 minutes
    • Now it can be ~10 seconds
  • Pixi provides a lot of "user experience" improvements

Pixi

What does Pixi give you?

Pixi
  • Workspace model of working
    • Add a pixi.toml to describe the software you need
    • Can contain multiple environments for different use cases
    • Can also describe commands to run in the environment ("tasks")

What does Pixi give you?

Pixi
  • Workspace model of working
    • Add a pixi.toml to describe the software you need
    • Can contain multiple environments for different use cases
    • Can also describe commands to run in the environment ("tasks")
  • Pixi then takes care of generating a lock file
    • Ensures that everyone has the same software installed*
    • This should typically be committed to the repository†
* Assuming the same OS (Linux/macOS) and CPU architecture.
† Tools like renovate can be used to automatically update the lock file periodically.

What does Pixi give you?

Pixi
  • Workspace model of working
    • Add a pixi.toml to describe the software you need
    • Can contain multiple environments for different use cases
    • Can also describe commands to run in the environment ("tasks")
  • Pixi then takes care of generating a lock file
    • Ensures that everyone has the same software installed*
    • This should typically be committed to the repository†
* Assuming the same OS (Linux/macOS) and CPU architecture.
† Tools like renovate can be used to automatically update the lock file periodically.
  • 🪄 Pixi takes care of managing all of the software environments for you 🪄

What does this look like in practice?

  • I'm going to take DiracX as an example
    • This is a fairly extreme case, don't take the pixi.toml as an example!

What does this look like in practice?

  • I'm going to take DiracX as an example
    • This is a fairly extreme case, don't take the pixi.toml as an example!
  • Running the unit tests is as simple as having pixi installed and running:
$ git clone git@github.com:DIRACGrid/diracx.git
$ cd diracx/
$ pixi run pytest-diracx
...
===== 446 passed, 42 skipped, 1 xfailed, 28 warnings in 35.77s =====

What does this look like in practice?

  • I'm going to take DiracX as an example
    • This is a fairly extreme case, don't take the pixi.toml as an example!
  • Running the unit tests is as simple as having pixi installed and running:
$ git clone git@github.com:DIRACGrid/diracx.git
$ cd diracx/
$ pixi run pytest-diracx
...
===== 446 passed, 42 skipped, 1 xfailed, 28 warnings in 35.77s =====
  • DiracX has 30 different software environments for different use cases
    • Developers don't need to think about them at all...

More examples...

  • Completely different software environment is used for this one:
$ pixi run pytest-gubbins
===== 58 passed, 2 skipped, 1 warning in 10.58s =====
  • A non-trivial tooling script for running code generation
$ pixi run generate-client
Please select an environment to run the task in: ›
❯ diracx-generate-client
  gubbins-generate-client
...
===== 1 passed, 1 warning in 91.27s (0:01:31) =====

Nothing is so perfect...

  • The main trade off is disk space and IO usage
    • Pixi tries to be smart with reflinking/hardlinks, laziness, etc.
  • It's fine on a local NVMe drive (e.g. your laptop)
    • On hard drives it's not ideal but manageable
    • On AFS it's almost unusable
    • Having it in every grid job would be a disaster (there is a reason we have CVMFS!)

Can we have our cake and eat it?

Can we have our cake and eat it?

  • What does "installing a conda package" mean?
    1. Download and extract the package to the local cache
    2. "Copy" the files to the install location
    3. Apply any necessary fixes (e.g. shebangs, hard coded paths, python stuff, ...)

Can we have our cake and eat it?

  • What does "installing a conda package" mean?
    1. Download and extract the package to the local cache
    2. "Copy" the files to the install location
    3. Apply any necessary fixes (e.g. shebangs, hard coded paths, python stuff, ...)
  • RattlerFS is a virtual filesystem which implements step 2+3
    • Proxies data from the local cache to the install location on demand
    • No need to copy files, no disk usage or IO overhead!

One step further with CVMFS

Download and extract the package to the local cache

  • We already have a tool for that: CVMFS!
  • Cache all conda-forge packages on CVMFS
    • RattlerFS can proxy them to the install location on demand:
$ ls /cvmfs/conda-cache.cern.ch/prototype-v2/*
linux-64/  noarch/  osx-arm64/

RattlerFS status

  • This works on Linux/macOS/Windows using FUSE/NFS/ProjFS*
  • The upstream package that provides conda tooling (rattler) is interested
  • "Just" need to open the (large) pull request...
* Not all backends work on all operating systems

Some asides

Security

  • This involves installing random software from the internet
  • Should use dependency cooldowns
    • Only install software that is more than a few days old
    • Hope malicious software is discovered by someone else first
  • Should use dependency pinning
    • i.e. commit the lock file like I already mentioned

Global

  • Often you want to install some tools which are always available
  • You can install these globally with pixi global install <package>
    • This makes a small environment per tool
    • Only a single wrapper binary is added to your PATH, which will then call the tool in its own environment
    • No more having junk on path due to it being an indirect dependency of some other tool

Summary

  • The workspace model really changes how you think about software management
    • Not unique to pixi, but I don't know anything else that is language/platform agnostic

Summary

  • The workspace model really changes how you think about software management
    • Not unique to pixi, but I don't know anything else that is language/platform agnostic
  • I think we should use pixi for any repository where we need software management
    • e.g. anything that has a requirements.txt or environment.yaml

Summary

  • The workspace model really changes how you think about software management
    • Not unique to pixi, but I don't know anything else that is language/platform agnostic
  • I think we should use pixi for any repository where we need software management
    • e.g. anything that has a requirements.txt or environment.yaml
  • With RattlerFS we can think about better integration with computing resources
    • Think next iteration of lb-conda (without breaking everything we already have)

Summary

  • The workspace model really changes how you think about software management
    • Not unique to pixi, but I don't know anything else that is language/platform agnostic
  • I think we should use pixi for any repository where we need software management
    • e.g. anything that has a requirements.txt or environment.yaml
  • With RattlerFS we can think about better integration with computing resources
    • Think next iteration of lb-conda (without breaking everything we already have)

Questions?
